Extrusora de Concreto para Pavimentos SFP1800 "SLIP FORM PAVER"

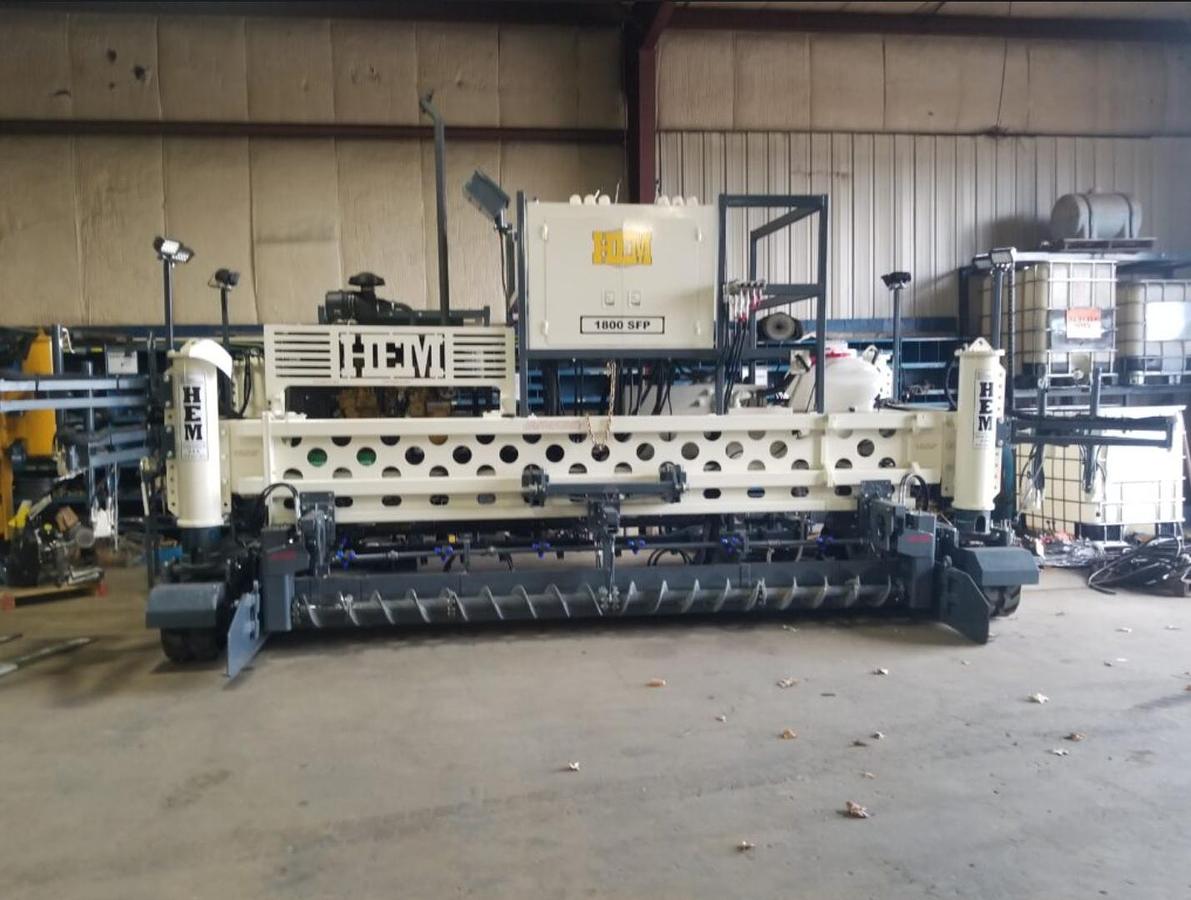

HEM SFP 1800

Slip Form Overlay Paver

with Tool Bar Mounting System

 Diesel Engine* -

• 208 hp (155.10 kW) Tier IV
• enclosed engine compartment
• engine soundproofing standard

Hydraulic Oil Reservoir - 101 gallon (382.32 liter)

Fuel Reservoir - 89 gallon (336.90 liter)

Hydraulic Pump System

• 4 section hydraulic pump
• single auxiliary hydraulic pump
• flow divider isolates right travel system from left travel system
• single shut-down disables all hydraulic functions

6 Port Hydraulic Vibrator Circuit

• with individual variable controls pressure compensated

4 Hydraulic Pan Vibrators

Automatic Left - Handed Steering System

• 1 hydraulic stringline sensor
• steer from left-hand side of machine
• automatic and manual steering, controlled from operator’s platform

Automatic Right - Handed Steering System

• 1 hydraulic stringline sensor
• steer from right side of machine
• automatic and manual steering, controlled from operator’s platform

4 Point Grade Control

• 4 hydraulic stringline sensors
• 4 tower hydraulic grade cylinders
• 24-inch (60.96 cm) lift range
• automatic and manual control
• system works with two stringlines, or “lock to grade”, or optional grade ski

Steel with Poly-Coated Track Drive

• proportional controls for infinite variability of speed
• direct hydraulic drive, no chains, or sprockets
• 12-inches (305 mm) wide continuous rubber tracks
• 56 ft. (17.06 m) per minute maximum travel speed

10 ft. (3.05 m) Main Frame

• 64-inch (163 cm) wide expanded metal walkway
• 24" hydraulic slide for 12' paving
• 26-inch (66 cm) deep tubular frame
• bolt together sectional design
• 64-inch (163 cm) wide structural frame
• frame legs adjustable for 0 to 24-inch (0 – 61 cm) lift
• tool bar style mounting system for all options

Spreader Auger System

• 12-inch (30.48 cm) diameter, split reversible, heavy-duty augers, variable speed
• chain drives
• augers are adjustable for height
• auger drives are shielded from wet concrete
• augers fold up and out for cleaning

6 Port Hydraulic Vibrator Circuit

• with individual variable controls pressure compensated

Steel Overlay Paving Pans with Side Forms

• bolt-together sections to allow for 10-12' paving (25.4 cm - 30.48 cm)
• 3/8-inch thick x 20-inch high x 28-inch long
• ( 9.5 mm thick x 50.8 cm high x 71.12 cm long)
• custom pan widths and lengths available - consult with factory
• side forms attach to the paving package of the machine, not tracks
• 6-inch (15 cm) vertical stroke on side forms
• adjustable edge slump control
• 2 pan-mounted vibrators with mounts
• 2 additional mounts included for optional additional pan vibrators

Lower Work Platform

• lower level to assist with hand working of slab
• slip resistant, perforated steel
• located at the bottom of the frame for easy access to concrete slab

Operator’s Platform

• grade, travel, vibration system pressure gauges
• hydraulic controls: travel, augers, auto steer, grade
• operator's seat for safety and comfort
• engine controls on console
• safety railing for access to walk platform

Longitudinal Tining System – tines not included

• adjustable angle
• adjustable distance from back of pan
• tining broom (NOT INCLUDED)

*Engine make determined by customer need and availability

Optional Equipment

(not included in base machine)

Additional Vibrator Circuits

Additional Pan Vibrators

Grade Ski

• 20 ft. (6.1 m) or 30 ft. (9.14 m) long
• adjustable spring tension

Steel Tracks in lieu of Rubber

Poly Pads - includes drilling of steel pads

Additional Complete Frame Extensions – includes Frame, Pans, Auger & Hoses

Spray System

Truck Attachment Linkage

• allows the paver to push the mixer truck
• adjustable length linkage arm
• mounts to the paver tool bar

Aluminum Loading Ramps

Critical Spare Parts Package

2-year filter package

Material and specifications subject to change without notification
